Classic CL
4030
(More information on
Efficiency)
Door: 20"x20"
Firebox: 40"x30"x26"
Heat Transfer Area: 52 sq. ft.
Weight: 1,350 lbs.
Water Capacity: 140 Gallons
|
 |
Classic CL 5036
(250,000 Max Btu**)
Door: 23"x23"
Firebox: 50"x36"x30"
Heat Transfer Area: 74 sq. ft.
Weight: 1,670 lbs.
Water Capacity: 196 Gallons
*Replaces up to 250 gallons of fuel oil per month
|
|
 |
Classic CL
6048
(500,000 Max Btu**)
Door: 23"x31"
Firebox: 60"x48"x36"
Heat Transfer Area: 119 sq. ft.
Weight: 2,450 lbs.
Water Capacity: 393 Gallons
*Replaces up to 500 gallons of fuel oil per month.
|
 |
Classic CL 7260
(For more than residential heating.)
Door: 30"x40"
Firebox: 72"x60"x40"
Heat Transfer Area: 170 sq. ft.
Weight: 3,910 lbs.
Water Capacity: 764 Gallons
*Replaces up to 1,500 gallons of fuel oil per month.
|
 |
Pallet
Burner
(Business solution for light commercial or industrial
use.)
Door: 54"x50"
Firebox: 72"x66"x54"
Weight: 4,880 lbs.
Water Capacity: 556 Gallons
Heat Transfer Area: N/A
*Heating capacity similar to the CL 7260.
*One year warranty.
|
 |
E-Classic 2300
(more information here)
Door: 23"x29"
Firebox: 36"x30"x41"
Weight: 2,900 lbs.
Water Capacity: 450 Gallons
Heat Transfer Area: N/A
*Heating capacity similar to the CL 6048.
*Replaces up to 800 gallons of fuel oil per month.
|
 |
E-Classic
2300 Dual Fuel Model
(More Information On Duel Fuel
Model)
Door: 23"x29"
Firebox: 36"x30"x41"
Weight: 3,000 lbs.
Water Capacity: 450 Gallons
Heat Transfer Area: N/A
Gas Backup Burner: 175,000 Btu
Gas-fired Wood Ignition Burner: 60,000 Btu
*Heating capacity similar to the CL 6048.
*Replaces up to 800 gallons of fuel oil per month.
|
 |

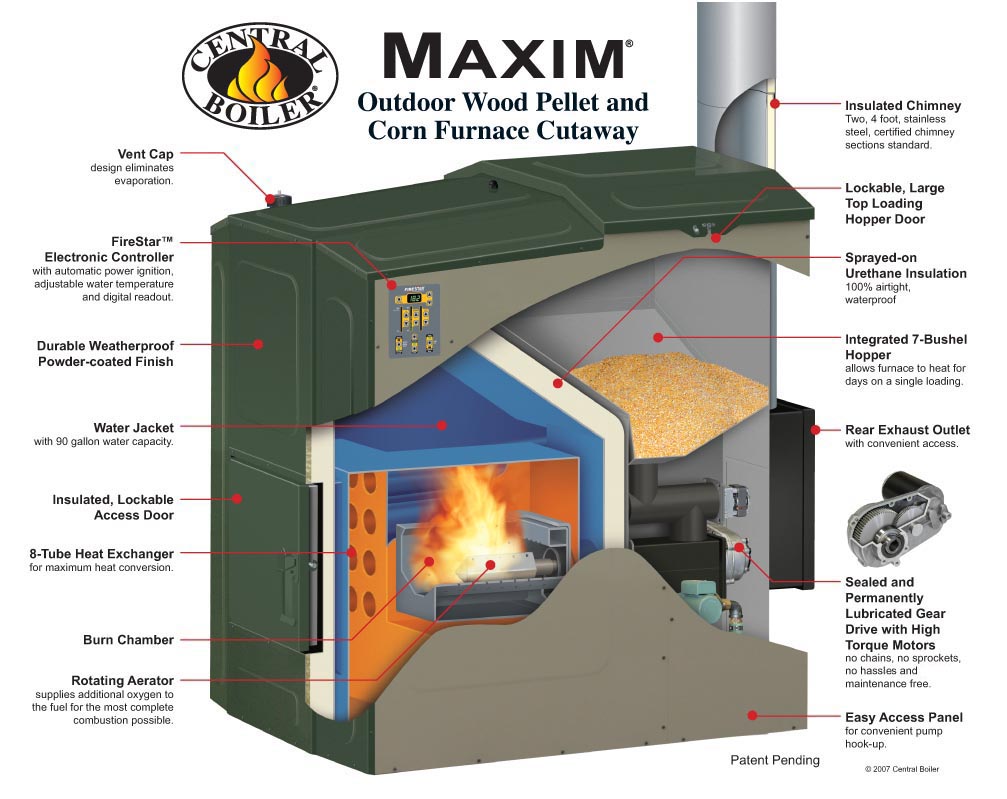

Maxim M175
Door 13.5" x 15.5"
Weight 1,200 lbs.
Water Capacity 90 Gallons
Maximum Btu175,000
Hopper Capacity 7 Bushel (360 lbs.)
Two 4-foot chimney sections are standard.
Optional transfer auger and optional
43-bushel hex hopper available.
Optional hopper extension kit available.
(More detail here)
|
 |

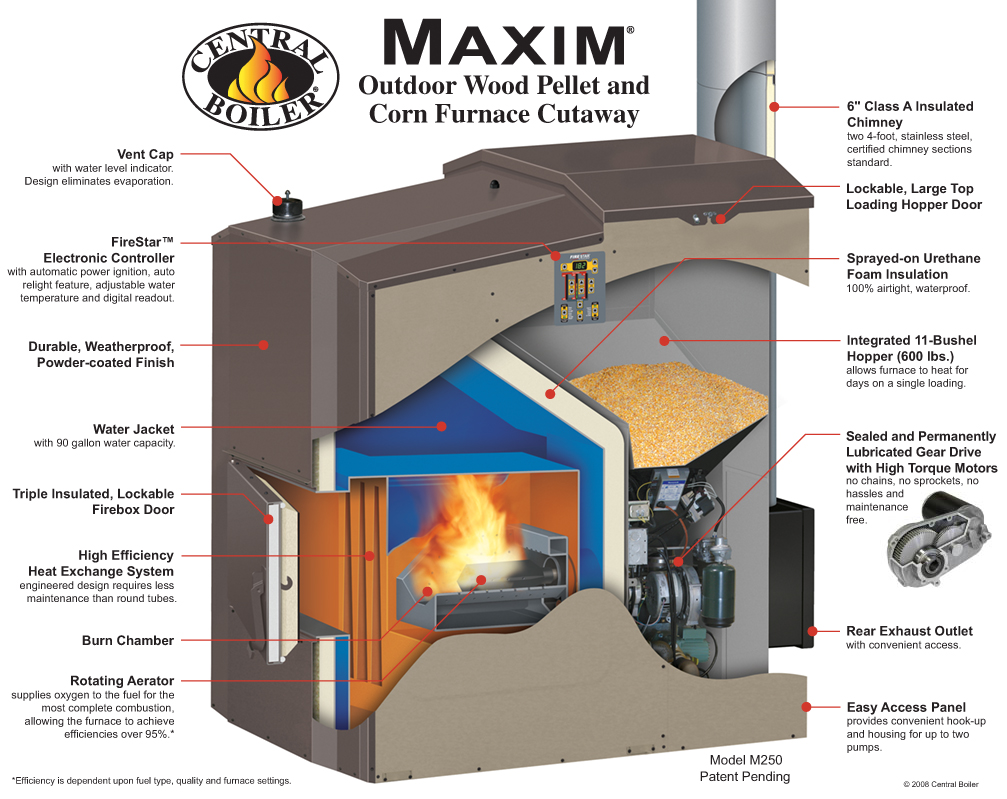

Maxim M250
Door 15.5" x 13.5"
Weight 1,310 lbs.
Water Capacity 90 Gallons
Maximum Btu 250,000
Hopper Capacity 11 Bushel (600 lbs.)
Two 4-foot chimney sections are standard.
Optional transfer auger and optional
43-bushel hex hopper available.
(More detail here)
|
 |
Thermopex
|
|
 |
Hydronic Components
|
| |

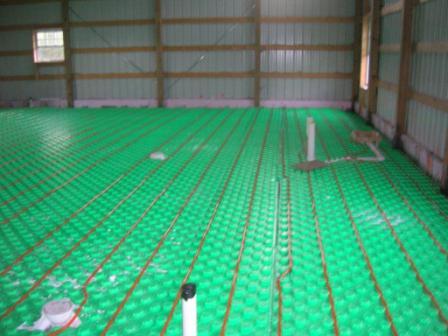

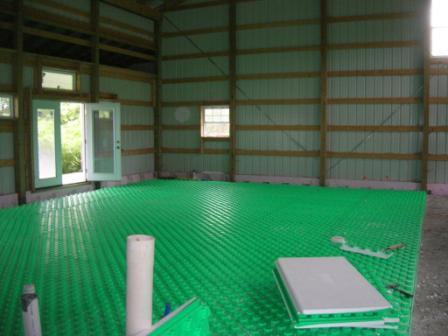

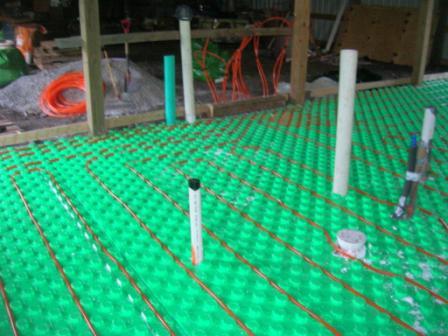

More Crete-Heat Pictures...Installation...
 |
